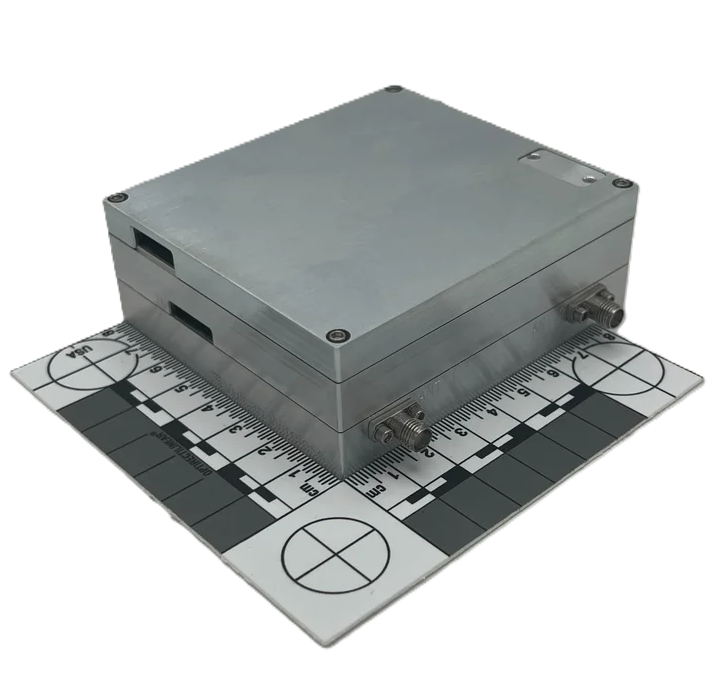

NSR-SDR-XS
The NSR-SDR-X/S is a highly configurable integrated full-duplex software defined radio supportingmultiple waveforms
Key Characteristics
2025 – 2115 MHz (X-Band Optional 7145-7750 MHz)
Uplink Frequency
8000 – 8500 MHz
Downlink Frequency
5 Watts RF (Power can be lowered from maximum via flight computer interface commands)
RF Power
1 Kbps to 4 Mbps
Downlink Data Rate
OQPSK (TM
Downlink Modulation
1 Kbps to 2 Mbps
Uplink Data Rate
BPSK (TC)
Downlink Modulation
LEO, MEO, GEO, and Cislunar/Lunar Applications
Orbits
Over the Air Reprogrammable
12V
DC Power
Options
AES-256 Encryption
Built in antenna switch for nadir and space-facing antennas
RF Antenna Switch
Direct to Earth
Direct to Earth Deep Space Mode
PCM/PSK/PM Tone and PN Ranging (Standard, Deep Space, Interstellar Modes)
Waveform Selection
Flanged
Non-flanged
Mounting
