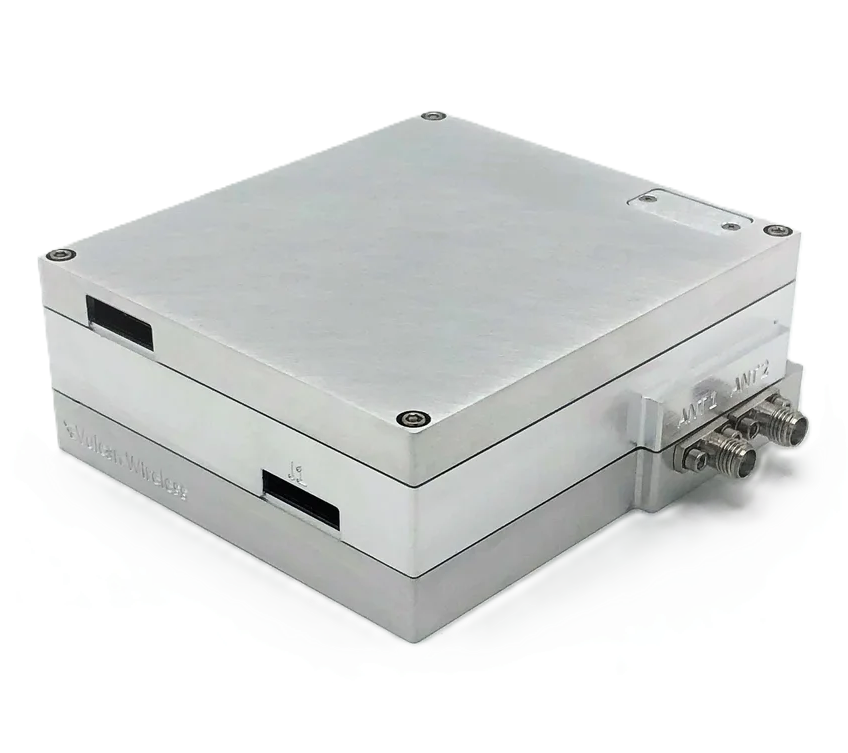

NSR-SDR-SS
The NSR-SDR-S/S is a highly configurable software defined radio supporting multiple waveforms andfull unified S-Band frequency coverage.
Key Characteristics
2025 – 2115 MHz
Uplink Frequency
2200 – 2300 MHz
Downlink Frequency
4 Watts RF (measured at Antenna Port, 4W inclusive of internal SPDT RF Switch & InternalDiplexer losses.)
RF Power
1 Kbps to 4 Mbps
Downlink Data Rate
SOQPSK (TM)
Downlink Modulation
1 Kbps to 4 Mbps
Uplink Data Rate
BPSK (TC)
Downlink Modulation
LEO, MEO, GEO, and Cislunar/Lunar Applications
Orbits
Over the Air Reprogrammable
Options
AES-256 Encryption
Built in antenna switch for nadir and space-facing antennas
RF Antenna Switch
Direct to Earth
Direct to Earth Deep Space Mode
TDRS-MA Forward/Return
PCM/PSK/PM Tone and PN Ranging (Standard, Deep Space, Interstellar Modes)
Proximity-1
LEOPARD Inter-Satellite Crosslink
DVB-S2
Additional Special Application Waveforms
Waveform Selection
Flanged
Non-flanged
Mounting
12V
28V
DC Power
