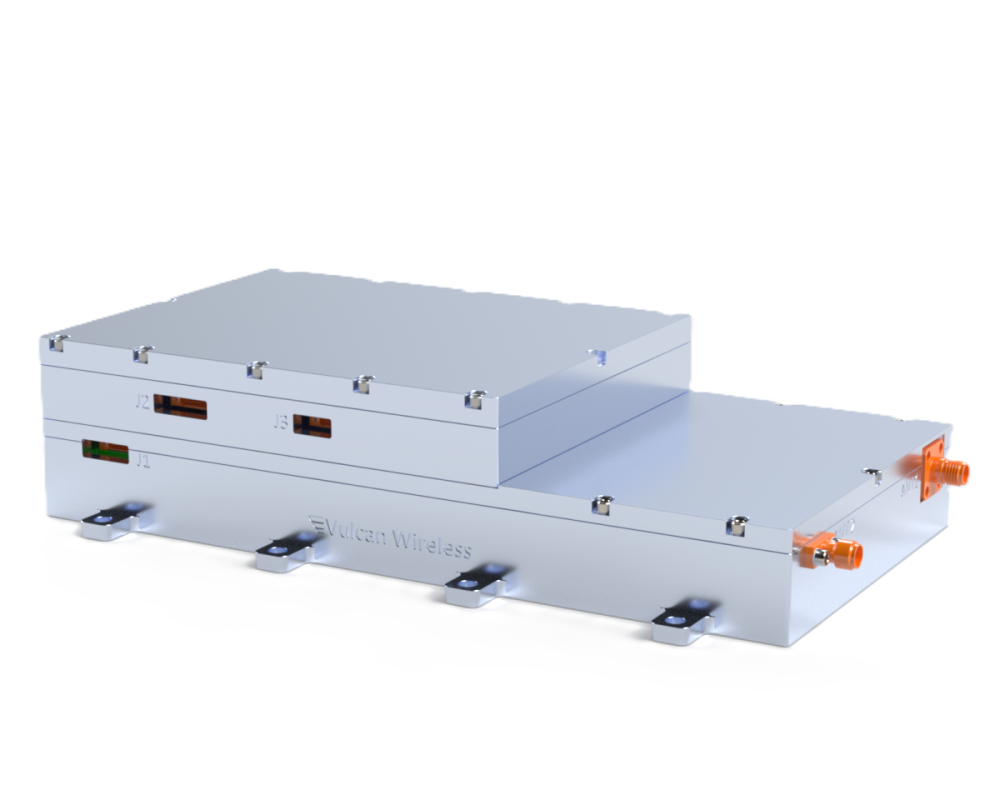

NSR-SDR-KKa-HDR

The NSR-SDR-K/Ka-HDR is a high-speed full duplex software defined radio designed to supportdownlink and uplink speeds of up to 1 Gbps.

Key Characteristics

  • 30-31 GHz (Military)

  • 27.5-30 GHz (Commercial)

Uplink Frequency

  • 20-21.2 GHz (Military)

  • 25.5-27.0 GHz (Commercial)

Downlink Frequency

5 Watts RF

RF Power

Up to 1 Gbps

Downlink Data Rate

DVB-S2

Modulation

Up to 1 Gbps

Uplink Data Rate

DVB-S2

Modulation

LEO, MEO, GEO, and Cislunar/Lunar Applications

Orbits

Over the Air Reprogrammable

Options

AES-256 Encryption

  • DVB-S2

  • Direct to Earth High Speed

  • Two-Way Time Transfer

  • Coherent Turn Around

Waveform Selection

  • Flanged

  • Non-flanged

Mounting

28V

DC Power

Request Additional Information
