NSR-SDR-KaS-HDR

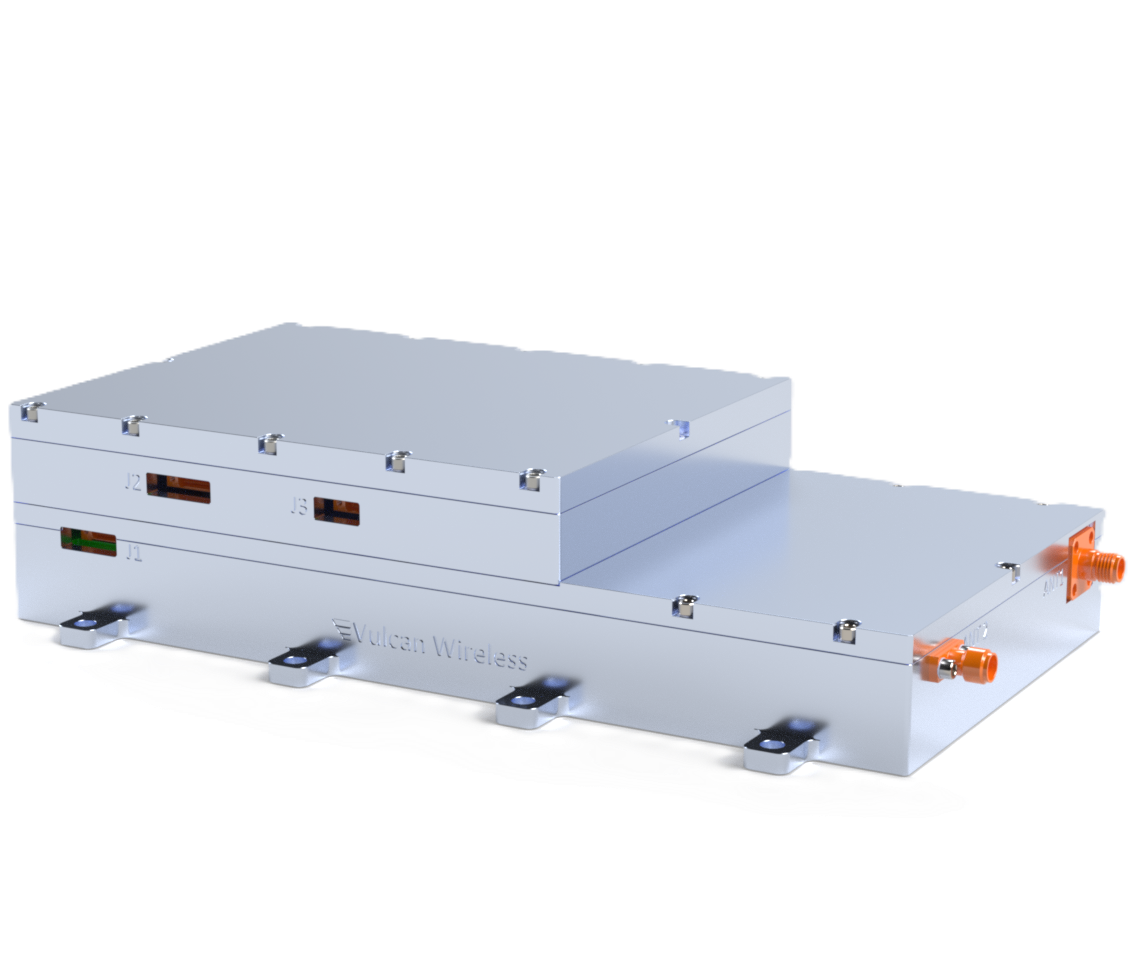

The NSR-SDR-Ka/S-HDR is a full duplex software defined radio designed to support high speed DVB-S2 downlink and S-Band uplink.
Key Characteristics
2025-2118 MH
Uplink Frequency
20-21.2 GHz (Military)
25.5-27.0 GHz (Commercial)
Downlink Frequency
5 Watts RF
RF Power
Up to 1 Gbps
Downlink Data Rate
DVB-S2
Modulation
Up to 4 Mbps
Uplink Data Rate
BPSK (TC)
Modulation
LEO, MEO, GEO, and Cislunar/Lunar Applications
Orbits
Over the Air Reprogrammable
Options
AES-256 Encryption
DVB-S2
Direct to Earth
Two-Way Time Transfer
Coherent Turn Around
Waveform Selection
Flanged
Non-flanged
Mounting
28V
DC Power
