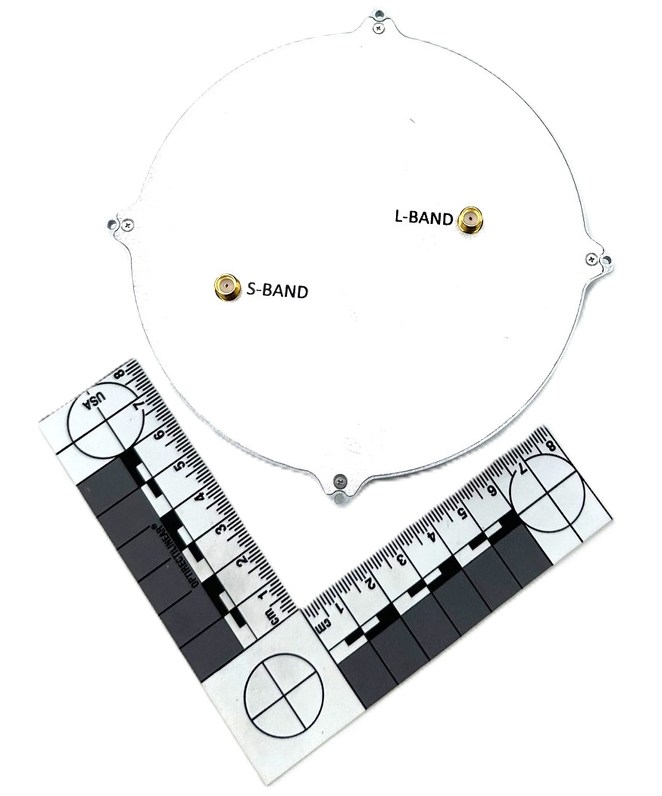

ANT-S/S/L
The ANT-S/S/L is compatible with our software defined radios and allows for fully frequency flexibility on orbit. This antenna supports the entire Unified S-Band and L-Band for receive and transmit thus allowing for one antenna for all possible frequency assignments.
Key Characteristics
2200 – 2300MHz
Tx Frequency
2025 – 2120 MHz (S-Band), 1760 – 1840 MHz (L-Band)
Rx Frequency
10 Watts CW maximum
Tx RF Power
RHCP or LHCP
Polarization Tx/Rx
-175 deg. C to +126 deg. C
Thermal Temperature Range
5-year mission life
Life
Mechanical Dimensions
113x171x42mm
Dimensions
239 grams
Mass
